Jumbo Display 4 inch 6 Digits SMIT 1933

Name: Jumbo Display 4 inch 6 Digits SMIT 1933
Brand: SAMYAK INSTRUMENTATION PVT LTD
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Jumbo Display 4 inch 6 Digits SMIT 1933 Specification

Dimension (L*W*H)
460 (W) mm x 138 (H) mm x 65 (D) mm Millimeter (mm)

Pressure
Up to 200 bar

Application
Auxiliary/Additional Display (with larger digits) for: Process Values: Temperature, Pressure etc. Electrical parameters: Power factor/Voltage/Current Weight Indicator, Counter

Accuracy
0.5 % of Full Scale

Product Type
Remote Display Unit

Connection
Panel Mounting

Function
Jumbo 6 Digits Digital Display Meter

Size
4 inch digit height

Color
Red LED Display

Protection Class
IP54 (Front Face)

Display Type
7 Segment LED

No. of Digits
6 Digits

Application
Industrial Process Monitoring, Counter, Timer, Production Data Display

Model Number
SMIT 1933

Digit Height
4 inches (Jumbo Display)

Input
Selectable (Pulse, Analog, Modbus, RS485)

Viewing Distance
Up to 80 meters

Operating Temperature
0C to 55C

Enclosure
Metal Body with Acrylic Front

Power Supply
230V AC / 24V DC

Mounting
Wall or Panel Mount

Jumbo Display 4 inch 6 Digits SMIT 1933 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Main Export Market(s)
Western Europe, Australia, Eastern Europe, Middle East, Africa, Central America, South America, Asia, North America

Main Domestic Market
All India

About Jumbo Display 4 inch 6 Digits SMIT 1933

Analog input: 4-20 mA/0-10VDC

Key board with 4-keys

Configurable parameter: Zero, Full scale

Display: 7-Segment LED

Size of Display digits: 4"

Number of Digits: 6

Colors of Display: Red

Communication Interface: (Optional)

- Master/Slave (factory configured)

- Wireless, Ethernet

Operating voltage: (Factory configured)

- Operating voltage: 110-230VAC +/-10% , 100 mA, 50Hz 24VDC +/-10%, 1 A

Mechanical Parameters:

Enclosure: General Purpose Metallic powder coated

Mounting: Table Top/Wall mount/Hanging

Dimensions: 460 (W) mm x 138 (H) mm x 65 (D) mm

Applications:

Auxiliary/Additional Display (with larger digits) for:

Process Values: Temperature, Pressure etc.

Electrical parameters: Power factor/Voltage/Current

Weight Indicator, Counter

Outstanding Visibility for Industrial Environments

Engineered for large facilities, the SMIT 1933 boasts 4-inch digits visible from up to 80 meters away. Its bright red LED display ensures readings are clear in both well-lit and dim industrial settings, making it ideal for use as an auxiliary display for process values, electrical parameters, and counters.

Versatile Input Compatibility and Precision

This jumbo display accommodates multiple input types, including Pulse, Analog, Modbus, and RS485, supporting a wide range of processes. Its accuracy of 0.5% of full scale ensures that critical values such as temperature, pressure, voltage, or current are reliably monitored at a glance.

Durable Construction and User-Friendly Installation

Housed in a metal body with an acrylic front, the SMIT 1933 resists corrosion and physical impact. The IP54-rated front guarantees protection from dust and splashes, while flexible wall or panel mounting options ensure straightforward installation in varied locations.

FAQ's of Jumbo Display 4 inch 6 Digits SMIT 1933:

Q: How do I install the Jumbo Display 4-inch 6 Digits SMIT 1933?

A: The display is designed for both wall and panel mounting. Secure the metal enclosure using appropriate fasteners in your desired location, then connect power (230V AC or 24V DC) and relevant input signals as per the wiring diagram provided in the manual.

Q: What types of input signals can the SMIT 1933 accept?

A: It supports Pulse, Analog, Modbus, and RS485 inputs, making it compatible with a diverse range of industrial sensors and controllers for displaying process values, electrical parameters, or count data.

Q: When is it beneficial to use a jumbo display meter in an industrial setting?

A: Jumbo display meters like the SMIT 1933 are especially valuable in large areas where readings must be seen from a distance, such as factory floors, power plants, and process lines. They enhance operational awareness and safety by enabling personnel to monitor critical data without approaching the equipment.

Q: What is the maximum viewing distance for this display?

A: Thanks to its 4-inch high red LED digits, the display can be easily read from up to 80 meters, ensuring clear visibility in expansive or busy environments.

Q: Where can the SMIT 1933 be typically used?

A: It is suitable for use as an auxiliary display in various industrial applications, including the monitoring of temperature, pressure (up to 200 bar), power factor, voltage, current, weight, and counters. Common installations are in manufacturing plants, utilities, and process industries.

Q: What level of protection does the enclosure provide?

A: The front face of the display conforms to IP54 protection standards, offering dust resistance and protection against water splashes, which is suitable for most indoor industrial environments.

Q: How accurate is the SMIT 1933 jumbo digital display?

A: The device delivers an accuracy of 0.5% of full scale, which ensures reliable display of measured values for improved process control and monitoring.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Remote Display Category

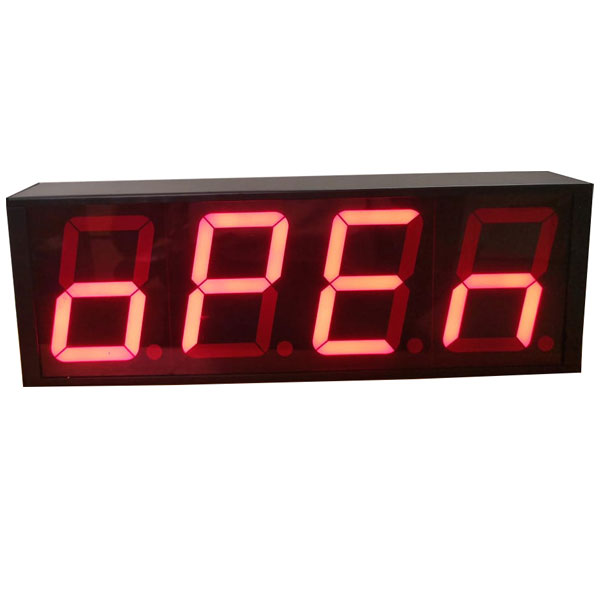

Jumbo LED Remote Display (4 inch 4 digits & IP65 or above)
